NEW

P13R-I

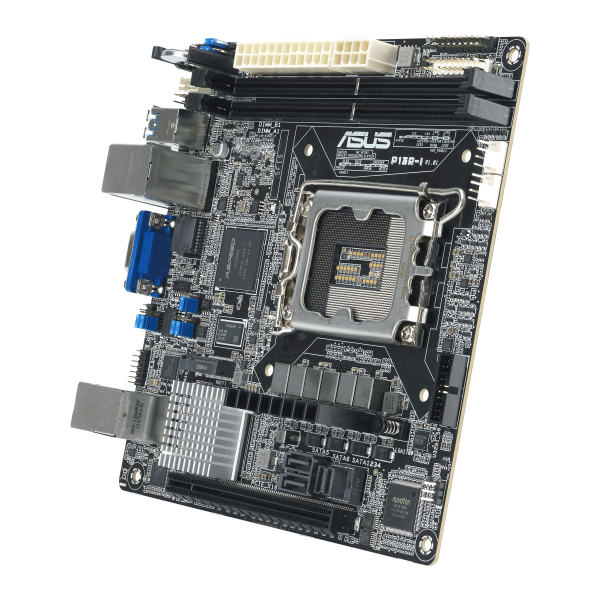

ASUS P13R-I is an Intel^® Xeon^® E-2400 LGA 1700 Mini-ITX server motherboard with two DDR5 ECC UDIMM slots, one M.2 slot, dual LAN ports, six SATA ports, one PCIe^® 5.0 slot, two USB 10Gbps ports and an onboard ASUS ASMB11-iKVM management module.

Datasheet

Add to compare

Features

Specifications

Resources

Products

Key Features

Powered by an 8-core Intel^® Xeon^® E-2400-series processor with support for up to 95 watt TDP
Flexible expandability with six native SATA ports and one PCIe^® 5.0 x16 slot
Dual Intel I210-AT2 gigabit Ethernet ports with teaming support
One M.2 slot for faster OS booting, and two DDR5 ECC UDIMM slots up to 64 Gbps
Onboard ASUS ASMB11-iKVM with ASPEED AST2600 controller for out-of-band management
Mini-ITX board in a compact footprint, making it a popular choice for SMB general purpose, mail and storage applications.
