RS700A-E11-RS4U


RS700A-E11-RS4U RS700A-E11-RS4U AMD EPYC™ 7003 1U dual-socket server that supports up to 32 DIMM, one dual-slot GPU (GPU SKU), 4 NVMe, 3 PCIe 4.0 slots, OCP 3.0, M.2 and ASMB10-iKVM Datasheet Add to compare Features Specifications Resources Products Features Specifications Resources Products Key Features Powered by AMD EPYC 7003 processor with 64 cores, 128 threads and support for a maximum TDP of up to 280 watts per socket GPU-optimized design allows one dual-slot or two single-slot GPUs for AI workloads (GPU SKU) Flexible 4 NVMe/SATA/SAS drives on front panel is designed for enterprise applications Up to three PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates Flexible onboard LAN-module design to enable four 1 Gb LAN or two 10 Gb LAN options Flexible cooling solution achieves lower power-usage effectiveness (PUE) and optimized TCO for data centers Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency High power efficiency with redundant 1600W 80 Plus Titanium and Platinum power supplies Print Specifications Loading... Loading... Loading... Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products. All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details. PCB color and bundled software versions are subject to change without notice. Brand and product names mentioned are trademarks of their respective companies. The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. The information contained is general testing result for reference. Please consult local sales representative for more information on specific supported CPU list on each system. * Optional means “built for order”.

AMD EPYC™ 7003 1U dual-socket server that supports up to 32 DIMM, one dual-slot GPU (GPU SKU), 4 NVMe, 3 PCIe 4.0 slots, OCP 3.0, M.2 and ASMB10-iKVM

Datasheet

Add to compare

Features

Specifications

Resources

Products

Key Features

Powered by AMD EPYC 7003 processor with 64 cores, 128 threads and support for a maximum TDP of up to 280 watts per socket
GPU-optimized design allows one dual-slot or two single-slot GPUs for AI workloads (GPU SKU)

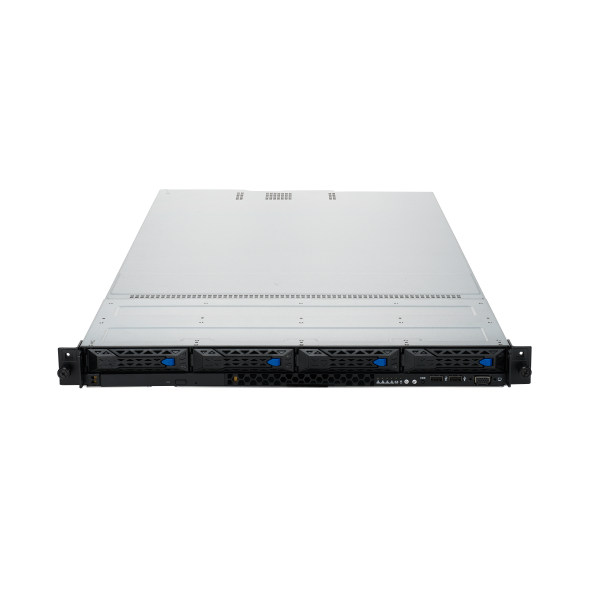

Flexible 4 NVMe/SATA/SAS drives on front panel is designed for enterprise applications
Up to three PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
Flexible onboard LAN-module design to enable four 1 Gb LAN or two 10 Gb LAN options
Flexible cooling solution achieves lower power-usage effectiveness (PUE) and optimized TCO for data centers
Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency

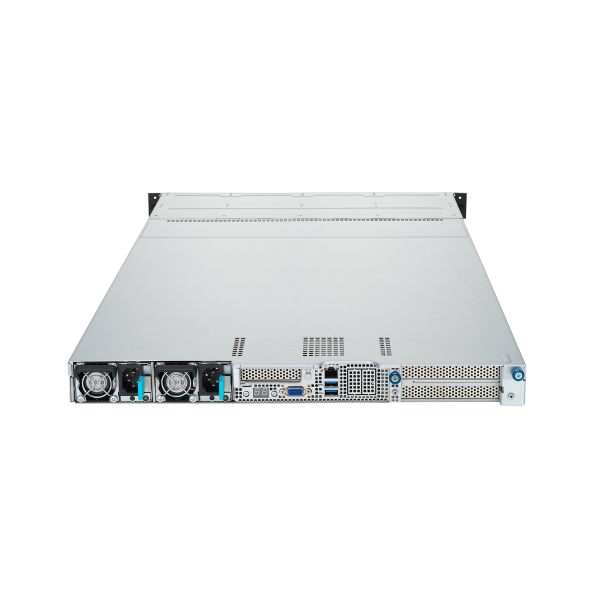

High power efficiency with redundant 1600W 80 Plus Titanium and Platinum power supplies

Specifications

Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The information contained is general testing result for reference. Please consult local sales representative for more information on specific supported CPU list on each system.
* Optional means “built for order”.
