RS300-E11-RS4


RS300-E11-RS4 RS300-E11-RS4 Intel® Xeon® E-2300 1U server with four DIMM, two NVMe, one M.2 and two PCIe 4.0 slots, dual LAN , 80 PLUS® Platinum redundant power supplies, Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM Datasheet Add to compare Features Specifications Resources Products Features Specifications Resources Products Key Features Ideal for remote office/branch office (ROBO) use and everyday business environments Powered by eight-core Intel Xeon E-2300-series processor with support for up to 95 W TDP Four 3.5” or 2.5” hot-swap drives on front panel and one M.2 to enable extensive storage Up to two PCIe® 4.0 slots and one PCIe® 3.0 proprietary slot to drive higher bandwidth High power efficiency with redundant 450 W 80 PLUS Platinum power supplies Dual Intel I210AT Gigabit Ethernet with teaming support ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency Print Specifications Loading... Loading... Loading... Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products. All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details. PCB color and bundled software versions are subject to change without notice. Brand and product names mentioned are trademarks of their respective companies. The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. The information contained is general testing result for reference. Please consult local sales representative for more information on specific supported CPU list on each system. * Optional means “built for order”.

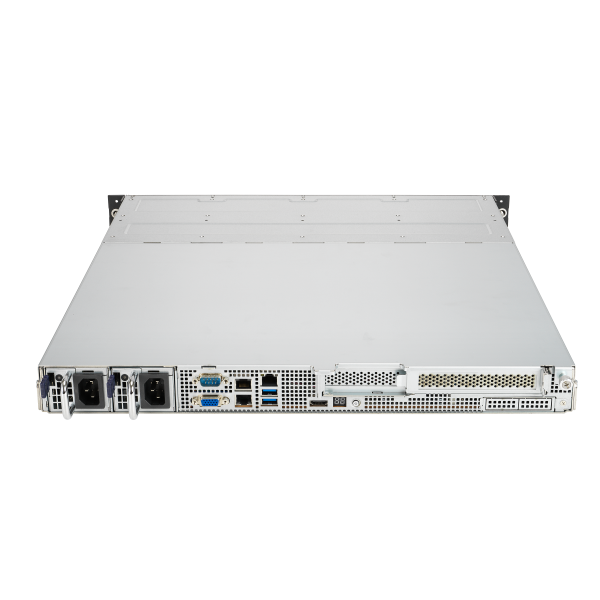

Intel® Xeon® E-2300 1U server with four DIMM, two NVMe, one M.2 and two PCIe 4.0 slots, dual LAN , 80 PLUS® Platinum redundant power supplies, Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM

Datasheet

Add to compare

Features

Specifications

Resources

Products

Key Features

Ideal for remote office/branch office (ROBO) use and everyday business environments
Powered by eight-core Intel Xeon E-2300-series processor with support for up to 95 W TDP
Four 3.5” or 2.5” hot-swap drives on front panel and one M.2 to enable extensive storage
Up to two PCIe® 4.0 slots and one PCIe® 3.0 proprietary slot to drive higher bandwidth
High power efficiency with redundant 450 W 80 PLUS Platinum power supplies
Dual Intel I210AT Gigabit Ethernet with teaming support
ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency

Specifications

Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The information contained is general testing result for reference. Please consult local sales representative for more information on specific supported CPU list on each system.
* Optional means “built for order”.
