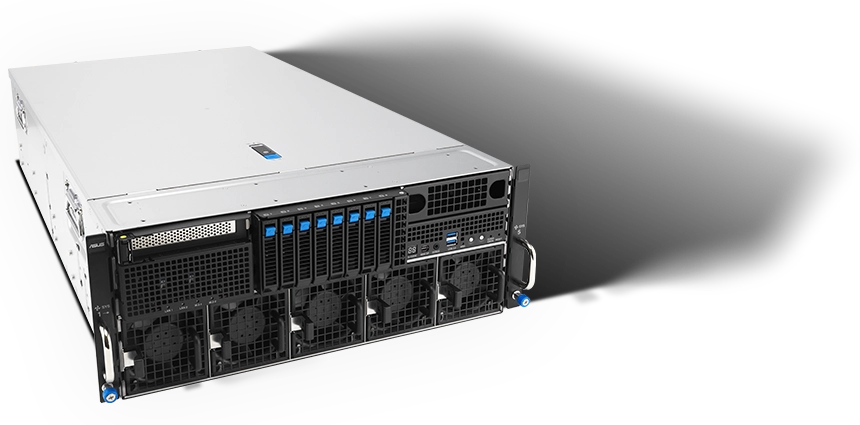

• Eight dual-slot GPUs in a high-density 4U compute server

    Powered by Intel Xeon 6 dual-processors, ESC8000-E12P delivers exceptional performance, featuring top-tier GPUs, faster GPU interconnects, and higher-bandwidth fabric. This powerhouse server supports up to eight dual-slot GPUs, either active or passive, and offers flexible scalability with options for NVIDIA® NVLink® Bridge. This configuration allows seamless scaling and performance enhancement, making ESC8000-E12P an ideal choice for tackling the most Enterprise AI and HPC tasks.

    ESC8000A-E13P

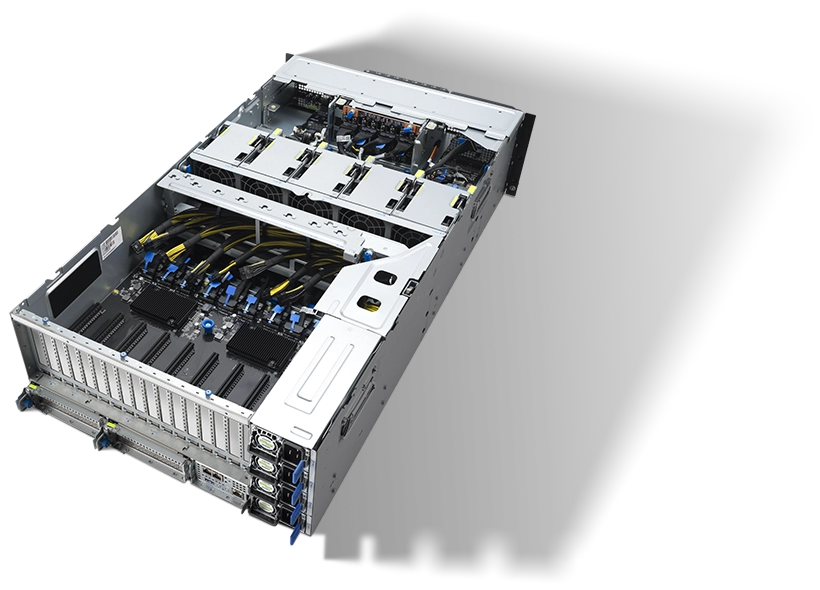

    Scale with ease and flexibility using MGX architecture

    ESC8000-E12P takes AI infrastructure to the next level by leveraging NVIDIA® MGX™, an open and flexible reference design that ensures future-proof compatibility. With its innovative modular architecture offering up to 160 customizable configurations, clients can easily tailor their solutions to meet specific AI and high-performance computing needs. MGX sets a new industry benchmark for modular server design, enhancing ROI and slashing time to market — empowering businesses to stay ahead in the fast-evolving AI landscape.

    ESC8000A-E13P

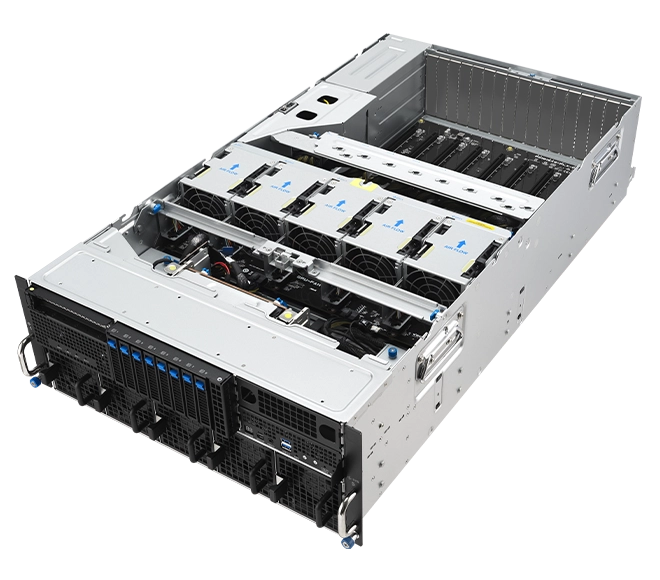

    System Layout Panel Layout Block Diagram
    • This is a line graph that helps people understand the locations of the key components on this server. This is a line graph that helps people understand the locations of the key components on this server.
      1 2 3 4 5 6 7 8 9 10

      13200W (3+1) Redundant 80 PLUS Titanium Power Supply

      21 x PCIe x 16 (Gen5, x16 link, FHHL) for NIC card

      32 x Intel® Xeon® 6 processors

      41 x PCIe x 16 (Gen5, x8 link ,FHHL)

      51 x PCIe x 16 (Gen5, x8 link ,FHHL) for dual M.2

      68 x 2.5” Hot-swap HDD Bays

      78 x PCIe x 16 (Gen5, x16 link, FHFL) for Dual-slot GPU card (up to 600W)

      84 x PCIe x 16 (Gen5, x16 link, FHFL) for NIC / BlueField-3 Card

      9GPU fan module 8080 *5

      10Fron I/O

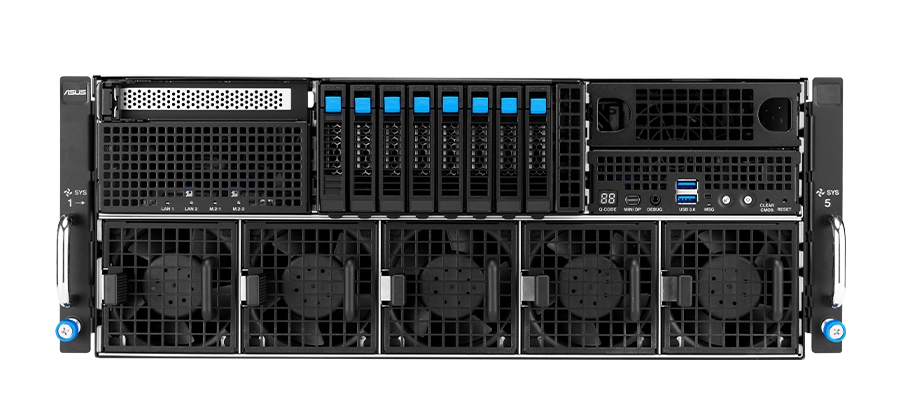

    • Front Panel Rear Panel
      • This is a line graph that helps people understand the locations of the key components on this server. This is a line graph that helps people understand the locations of the key components on this server.
        1 2 3 4 5

        11 x PCIe x8 (Gen5 x8 link, FHHL)

        28 x 2.5” Hot-swap HDD Bays

        3Front I/O

        41 x PCle x 16 (Gen5 x8 link, FHHL) for dual M.2

        5System fan module 8080 *5

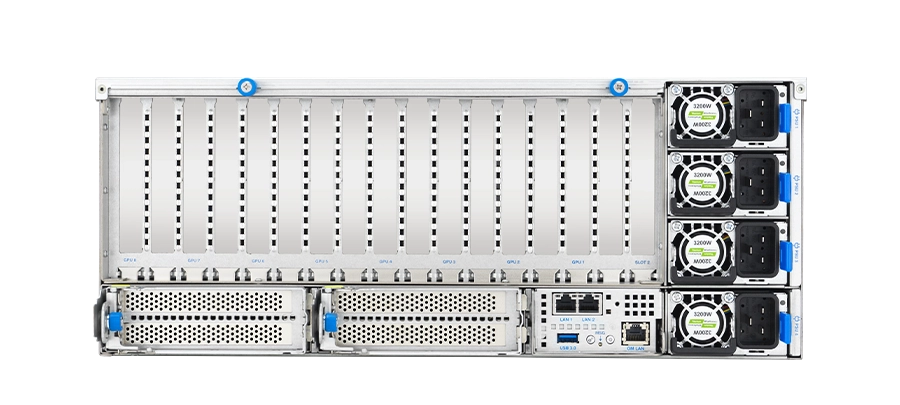

      • This is a line graph that helps people understand the locations of the key components on this server. This is a line graph that helps people understand the locations of the key components on this server.
        1 1 2 3 4 4 5

        18 x PCIe x16 (Gen5 x16 link, FHFL) for dual-slot GPU card

        21 x PCIe x16 (Gen5 x16 link, FHHL) for NIC card

        33+1 Redundant 3200W 80 PLUS Titanium power

        44 x PCIe x16 (Gen5x16 link, FHHL) for NIC / BlueField-3 card

        5Rear I/O

    • This is a graph that helps people understand the system diagram on this server.

  • Intel Xeon 6 processors

    Intel Xeon 6 processors represent a significant leap forward in performance and efficiency, specifically designed to meet the demands of advanced AI, networking and data center workloads. Featuring an all-P-core architecture, these processors deliver exceptional computational power, enabling enterprises to tackle the most demanding applications with ease. With support for high-speed DDR5 memory and PCIe 5.0 I/O, the Intel Xeon 6 processors ensure seamless scalability and enhanced data throughput, making them ideal for modern high-performance environments. Additionally, their optimized energy efficiency and robust design cater to the evolving needs of next-generation data centers, solidifying Intel's leadership in AI and networking solutions.

    This is an Intel Xeon logo on a blue gradient background.
  • ESC8000A-E13P

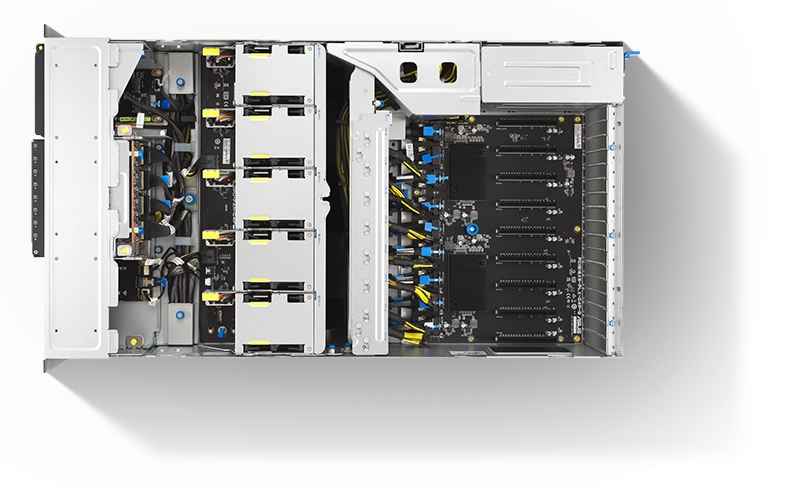

    Supercharge your system with PCIe 5.0 connectivity switch solutions

    This server features the latest Broadcom PEX89000 series of switches, supporting up to 1,024Gbps (128GBps) of raw bandwidth per port (x16) to create high-availability hyper-scale systems. It uses the PCI Express 5.0 bus to empower communication between in-rack hosts and endpoints, simplifying connectivity while providing the highest PCIe-switching performance available for data center servers, storage and networks. Take advantage of these industry-first features today for the most demanding hyper-converged AI/ML/DL applications.

  • Effortless maintenance with a toolless design for speed and simplicity

    Designed for easy maintenance with a refined mechanical structure, ESC8000-E12P allows the entire machine to be disassembled completely without tools.

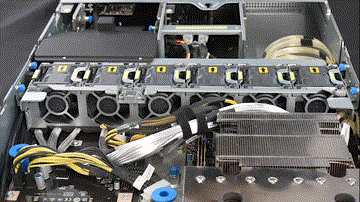

    • A motion that helps people understand how to easily to manage the server

      Toolless removal

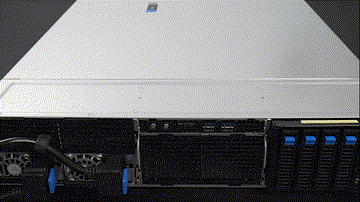

    • A motion that helps people understand how to easily to manage the server

      Quick installation

    • A motion that helps people understand how to easily to manage the server

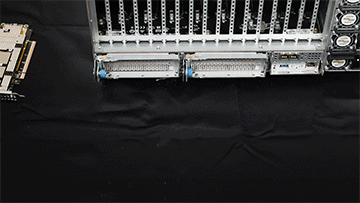

      Toolless removal and quick installation for PCIe card

    Server-management Solution

    BMC Management ASUS Control Center TPM 2.0

    • Remote server management

      ASUS ASMB11-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.

      Learn more 〉
      Bar charts comparing BMC BOOST times.0

    • Streamline IT operations via a single dashboard

      ASUS Control Center (ACC) is remote IT-management software application designed for monitoring hardware and software IT assets and inventory status, and enabling seamless remote BIOS configurations and updates, efficient IT diagnostics and troubleshooting and enhanced security with hotfix updates — allowing easier server management for any IT infrastructure.

      Learn more 〉

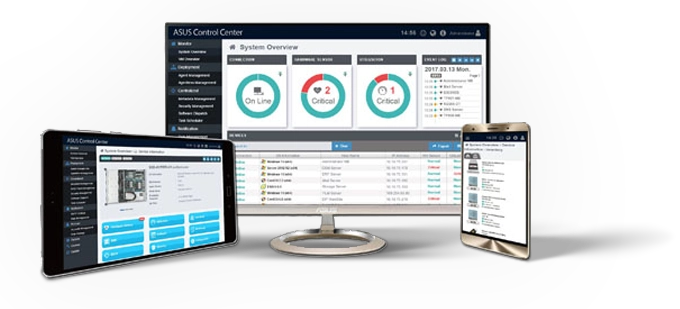

      ASUS server management interface displayed on desktop, tablet, and smartphone.

    • Trusted Platform Module 2.0

      ASUS servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.
